PERI UP Flex Reinforcement R75,100: Modular Reinforcement Scaffold for efficient work.

PERI UP Flex Reinforcement Scaffolding

Durable and versatile scaffolding reinforcement ideal for working formwork and concreting operations

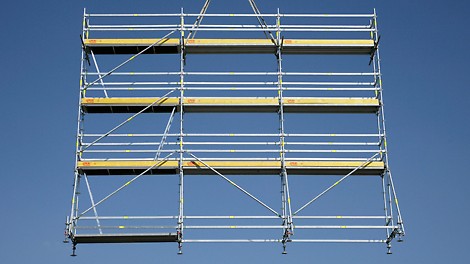

PERI UP Flex Reinforcement Scaffold is the ideal solution for daily site activities like reinforcement works, shuttering assembly and dismantling and concreting.

Prodcutivity is enchanced due to rapid erection and dismantling times and high levels of safety in the working platform areas. Ballast and anchors to provide stability are not required The system is available with a basic width of 150cm or 250cm versions and forms part of the PERI UP scaffolding kit with interchangeable parts for use with all applications.

PERI UP Flex Reinforcement Scaffolding in action

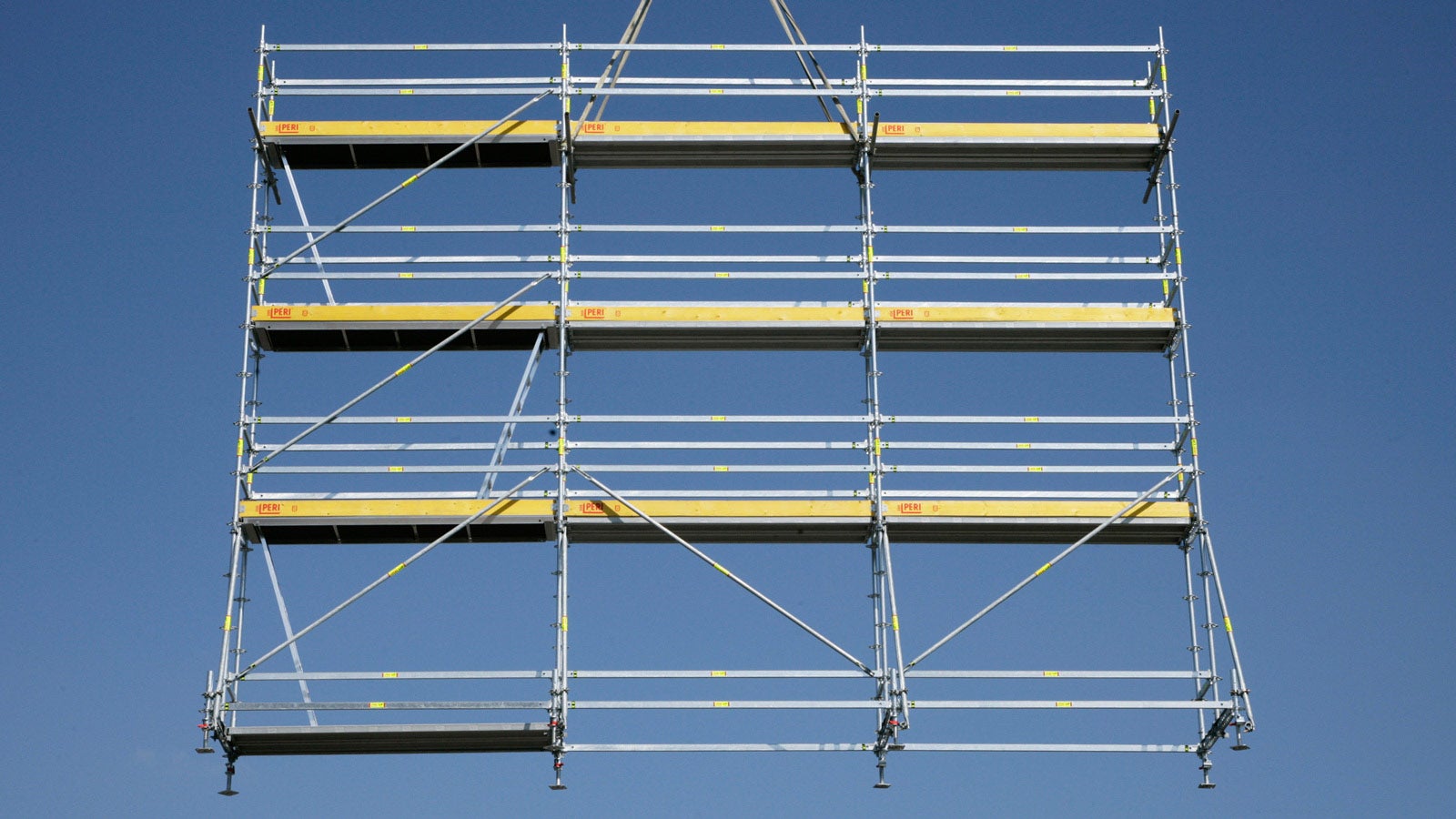

Save time through simplicity
A modular system, easy to handle and install, with high factors of safety, make PERI UP reinforcement an easy partner on your project

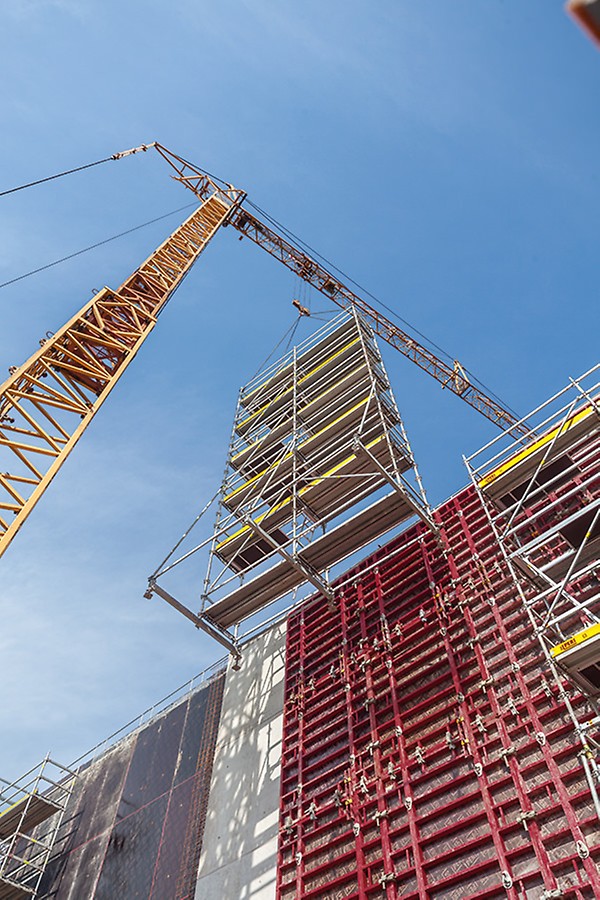

Easy to move, even in larger units
The Bracing Scaffold can be moved by crane in larger units to improve site efficiency
Safety as standard
All PERI UP solutions feature built-in safety features such as the gravity lock and integrated toeboards. With high factors of safety, ample working space and a stable working platform, workers can focus on the job in hand with peace of mind

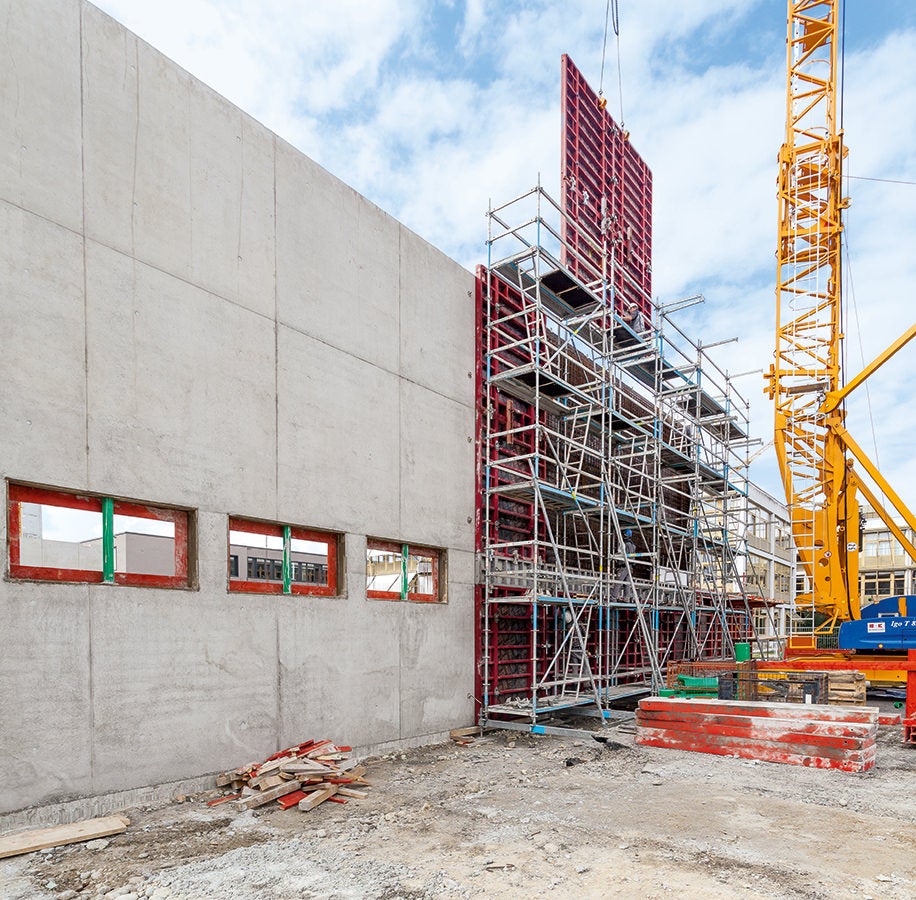

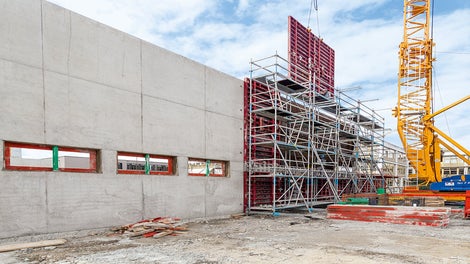

Stable
Ballast and anchors are not required.

Product Data Sheet

Technical specifications

Scaffold type

Reinforcement Framework

Type of use

Working scaffold up to load class 3 (200kg/m²)

Width class

SW 03, SW 06, SW 09, SW 12, SW 15

Load class

LK 1, LK 2, LK 3, LK 4, LK 5, LK 6

Design width

75cm, 100cm

Body heights

Up to 10.80 meters

Scaffolding grid

Metric

Type of pavement

Steel

Structure principle

Advance assembly in the system according to TRBS 2121-1 possible

Body length

1 field, 2 fields, 3 fields

Field length

150 cm, 200 cm, 250 cm, 300 cm

Base width

150 cm, 200 cm
