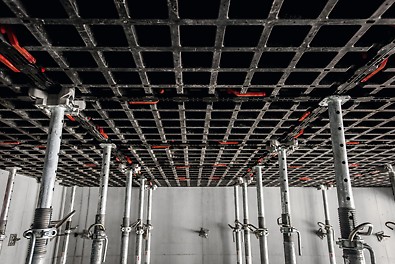

PEP Alpha-2 slab props in action
-
Durable & Robust

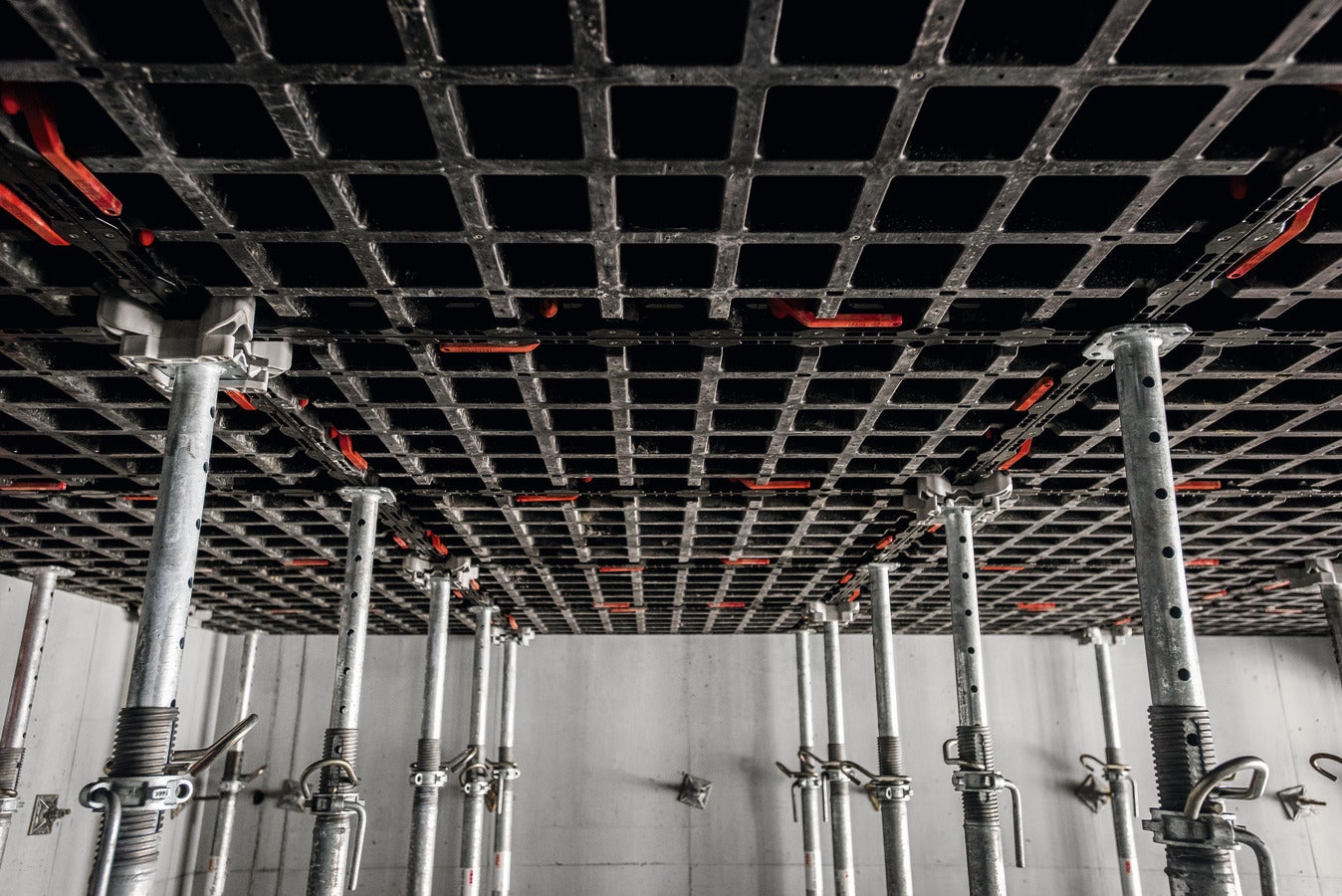

All parts of the PEP Alpha-2 slab prop are hot-dip galvanized with a robust and proven design according to DIN EN 1065.
-
High security
Safe working is guaranteed at all times due to safety clearance against crushing injuries of the hand and the anti-drop device for the inner tube.
Product Data Sheet
System type
Steel Supports
Material
Steel
Anti-corrosion and surface coating
All parts of the PEP Alpha-2 Slab Prop are hot-dip galvanized
Fulfilled standard
Maximum support load 36.1 kN - the load-bearing capacity is therefore above the European standard for supports according to DIN EN 1065
Other
Adjusting nut is positioned at an ergonomic height of 1.70 m or 2.00 m with manual crush protection with 10 cm free space to protect against injuries and a large adjustment range of the adjusting nut of 12 cm
Other
Tripods or frames as installation aids
Variant PEP Alpha-2 D-300
Weight
14,7 kg
Load
Maximum load capacity: 36,1 kN
Variant PEP Alpha-2 D-350
Weight
18,4 kg
Load
Maximum load capacity: 36,1 kN
Variant PEP Alpha-2 B-300
Weight
13,1 kg
Load
Maximum load capacity: 32,4 kN
Variant PEP Alpha-2 B-350
Weight
15,0 kg
Load
Maximum load capacity: 34,9 kN
