SONO WZ Concrete Sensor

The most efficient way to measure water to cement ratio on site in 2 minutes

With the SONO WZ analyzer, the water content of fresh concrete can be quickly and precisely determined on site. The device is based on the innovative TRIME® radar technology and supports simple quality control procedures on the jobsite.

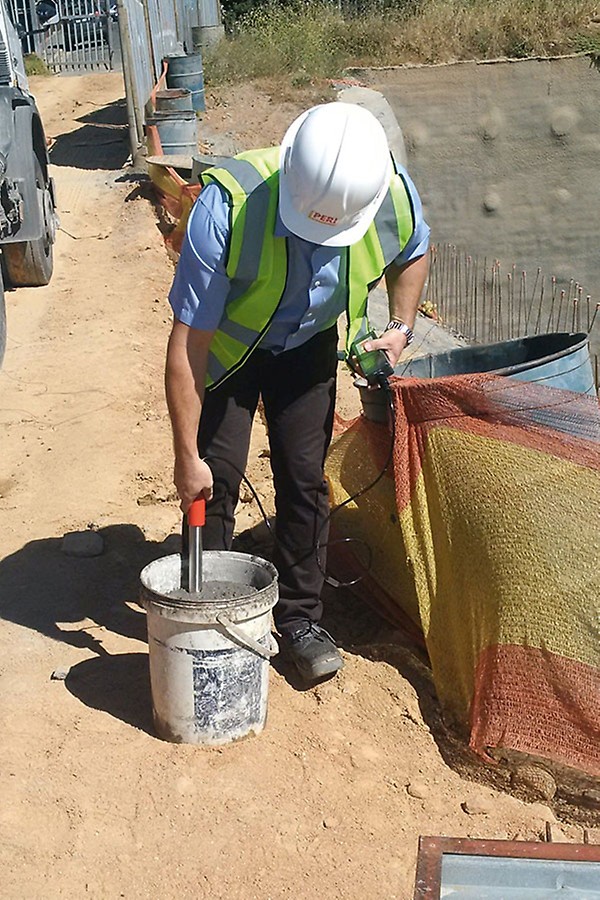

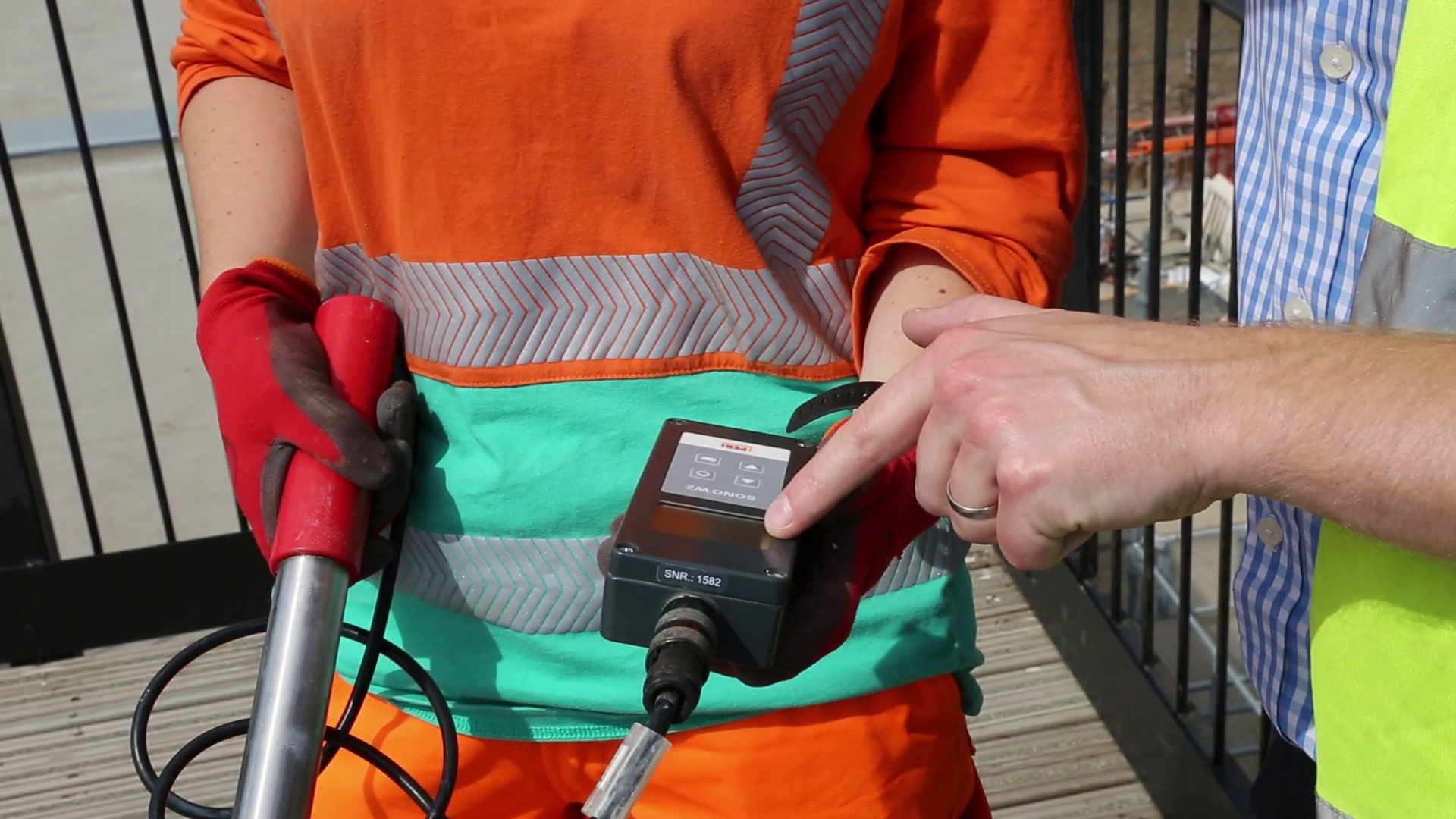

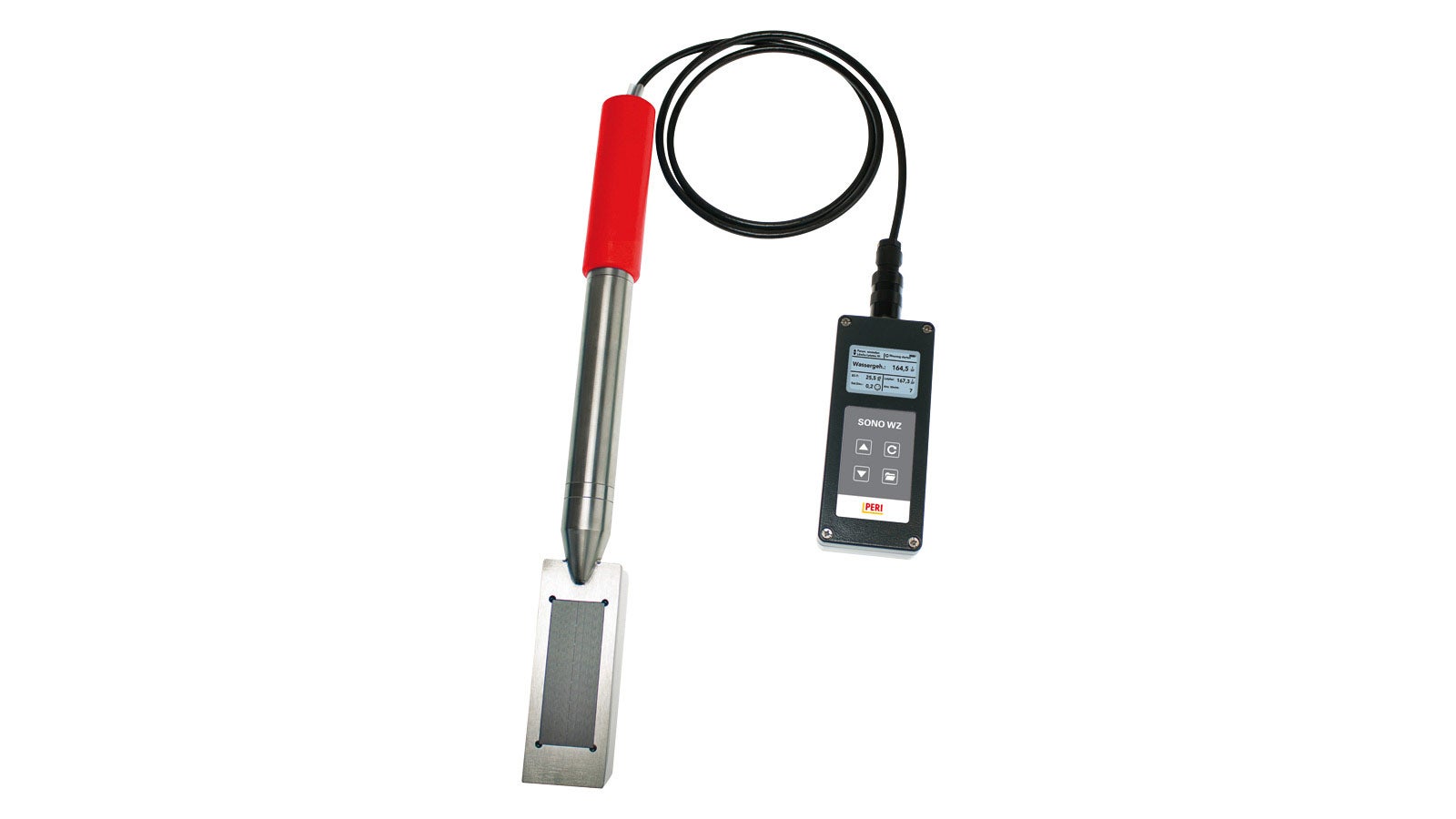

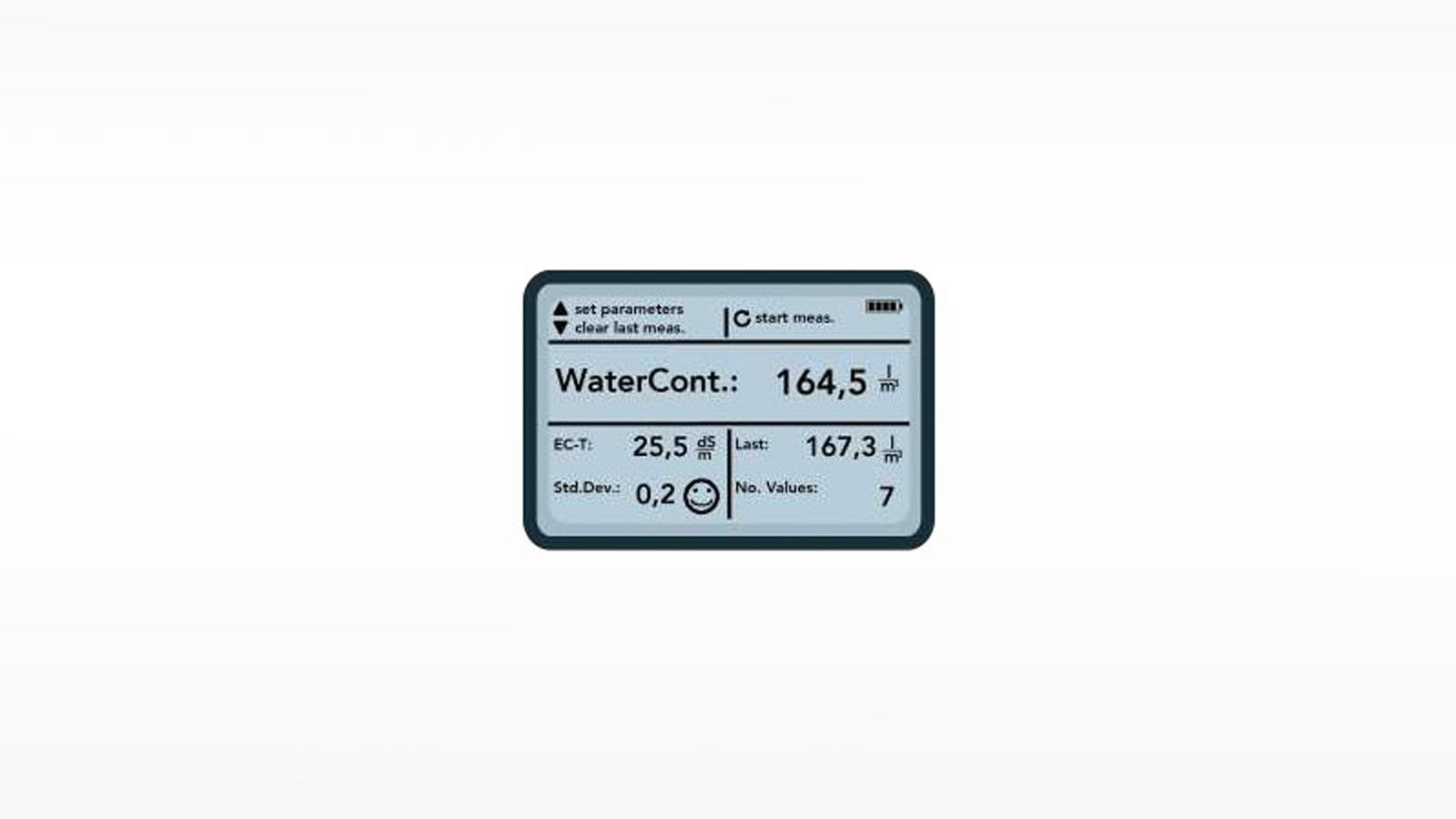

The SONO WZ device consists of a lancehead-shaped probe as well as a portable measuring instrument for displaying the measurement results. By taking 4 to 5 measurements, reliable information regarding the water content in fresh concrete can be achieved within 1 to 2 minutes.

Compared to the conventional method that has been used up to now for measuring water content using a complex test set-up for the so-called Darr procedure, the PERI SONO WZ analyzer leads to considerable time savings on the jobsite.

The technology is based on the TDR principle, also called cable radar. In the process, a high-frequency TDR pulse is generated in the device and runs along a probe, building up an electromagnetic field around the TRIME probe. At the end of the conductor, the pulse is completely reflected and travels back to the source. The duration of the impulse along the measuring probe is directly linked to the volumetric water content and thus provides the desired result.
